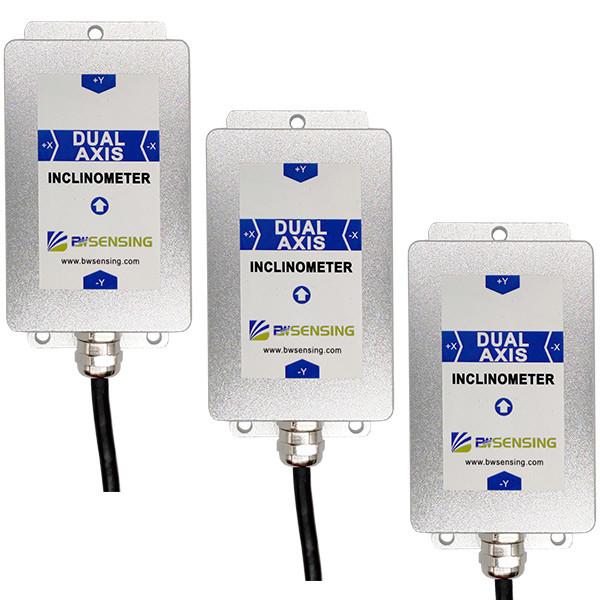

BWS2000S Series Digital Output High-Precision Dual Axis Analog Inclinometer RS485/232/TTL
Introduction
The sensor uses a high-resolution differential digital-to-analog converter with built-in automatic compensation and filtering algorithms to minimize errors caused by environmental changes.It is a recommended choice for industrial automation and inclination measurement in surveying and mapping industries!
Performance index
| Measurement Range (°) | Condition | ±5 | ±15 | ±30 |
| Measurement axis | Mutually perpendicular | X-Y | X-Y | X-Y |
| Accuracy (°) | Room temperature | 0.001 | 0.003 | 0.005 |
| Resolution (°) | Completely still | 0.0005 | 0.0005 | 0.0005 |
| Zero bias (°/℃) | -40~85℃ | ±0.0007 | ±0.0007 | ±0.0007 |
| Cross axis error (°) | -40~85℃ | 0.001 | 0.001 | 0.001 |
| Start-up time | | ＜3s | ＜3s | ＜3s |
| Output frequency (Hz) | 5-100Hz adjustable | Up to 100 | Up to 100 | Up to 100 |
| Baud rate | Adjustable | 2400~115200 | 2400~115200 | 2400~115200 |
| Mean time between failures MTBF | ≥90000 h |
| EMC | According to GBT17626 |
| Insulation resistance | ≥100 MΩ |
| Impact resistance | 2000g,0.5ms,3 times/axis |
Application
Tunnel and dam monitoring
Bridge deflection monitoring
Tower tilt monitoring
Wind turbine tower monitoring
FAQ
Q1: Accuracy definition of products
A: RMS accuracy, the accuracy of each product can be traced.Accuracy test report can be provided if required.
Q2: How to select suitable model?
A: Users should check the following points:
a. Single or dual axis?
b. Commom protocol, Modbus or CAN?
c. Dynamic or static Application scenarios?
d. Horizontal or vertical installation?
Q3: How to purchase?
A: If you want sample, please purchase on BWSENSING online shop. We accept Paypal/TT/CC.If you purchase in bulk, it is recommended to consult the sales for the best price.
Q4: How long is the warranty period?
A: One year.
Company introduction
Wuxi Bewis Sensing Technology LLC(BWSENSING) is an innovative fast growing company established in 2010. The company was born in The Institute of Microelectronics (IME) of Peking University. We have achieved the top spot in the middle and high-end industry applications in the Chinese market.
From 2019, BWSENSING ® is approved as our global brand.With 10 years experience in the research-design-development and manufacture of a range of Inertial sensor technology, BWSENSING posses the skills, knowledge and experience to provide fully integrated OEM/ODM design and manufacturing services for Inclinometer, Electronic Compass, IMU, AHRS, GNSS/INS and Fiber Optic Gyroscope. As the company co-founder Dr. Guangyi Shi said, we will use the Accurate and Cost-effective sensors to make a greater contribution to the global society for a better IoT world.
